Die Shear and wire Pull Tester (F&S 5600i Pull/Shear Tester)
Die Shear and wire Pull Tester
| Tool Type | Shear/Pull Force Tester |
|---|---|
| Location | Softwall Cleanroom |
| Supervisor |
Arin Abed |

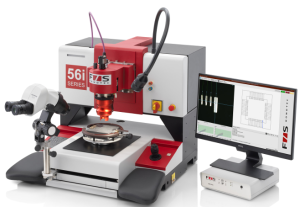

| Description | F&S 5600i Pull/Shear Tester |
About
The F&S 5600i die shear and wire pull testing tool is used to evaluate quality of wire bond or die attach process for microelectronic, optoelectronic, and hybrid devices. It has interchangeable modules to measure small die/ball or large die shear strength as well as wire pull force. Results can be analyzed and output immediately or exported in a number of data base formats for subsequent analysis as desired.
Application
- Wire pull Testing is a testing method that evaluates the strength and reliability of wire bonds by determining the pull-off force at which the bond wire will fail.
- Wire bond shear testing is a crucial evaluation technique used to assess the strength and integrity of wire bonds. By measuring the maximum force required to break the bond, shear testing provides valuable insights into the bond’s mechanical reliability and performance.
- Die shear test checks the die-bonding quality by determining the shear force at which the die is separated from the surface.
Pull/Shear Cartridges and Tools
- PH100i: Wire Pull up to 100gf with accuracy of 0.25gf and test speed up to 10mm/s.
- SH500i: Ball/Die Shear up to 500gf with accuracy of 1.25gf and test speed up to 10mm/s.
- SH5000i: Ball/Die Shear up to 5000gf with accuracy of 12.5gf and test speed up to 10mm/s.
- Die and ball Shear Tools
- Wire Pull Tools
System Overview
The tester shares the mainframe with the wire bonder and converts into a pull/shear tester by swapping the heads. The same mechanical features as wire bonder are available for the tester.
- XY motor driven workholder with 100x100mm travel range.
- Z axis with 60mm range and 360° rotation.
- Pattern Recognition.
- Automatic repeat measurements on hybrids or COB using the programmable table movement.
- Automatic calculation of the real pull forces at the bond points for standard compliant tests
Operating procedure and User's Manual
F&S 5600i Pull/Shear Tester SOP
F&S 5600i Pull/Shear Tester User's Manual
